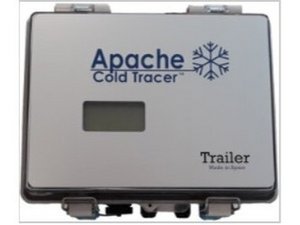

Apache - Cold Tracer
Key features

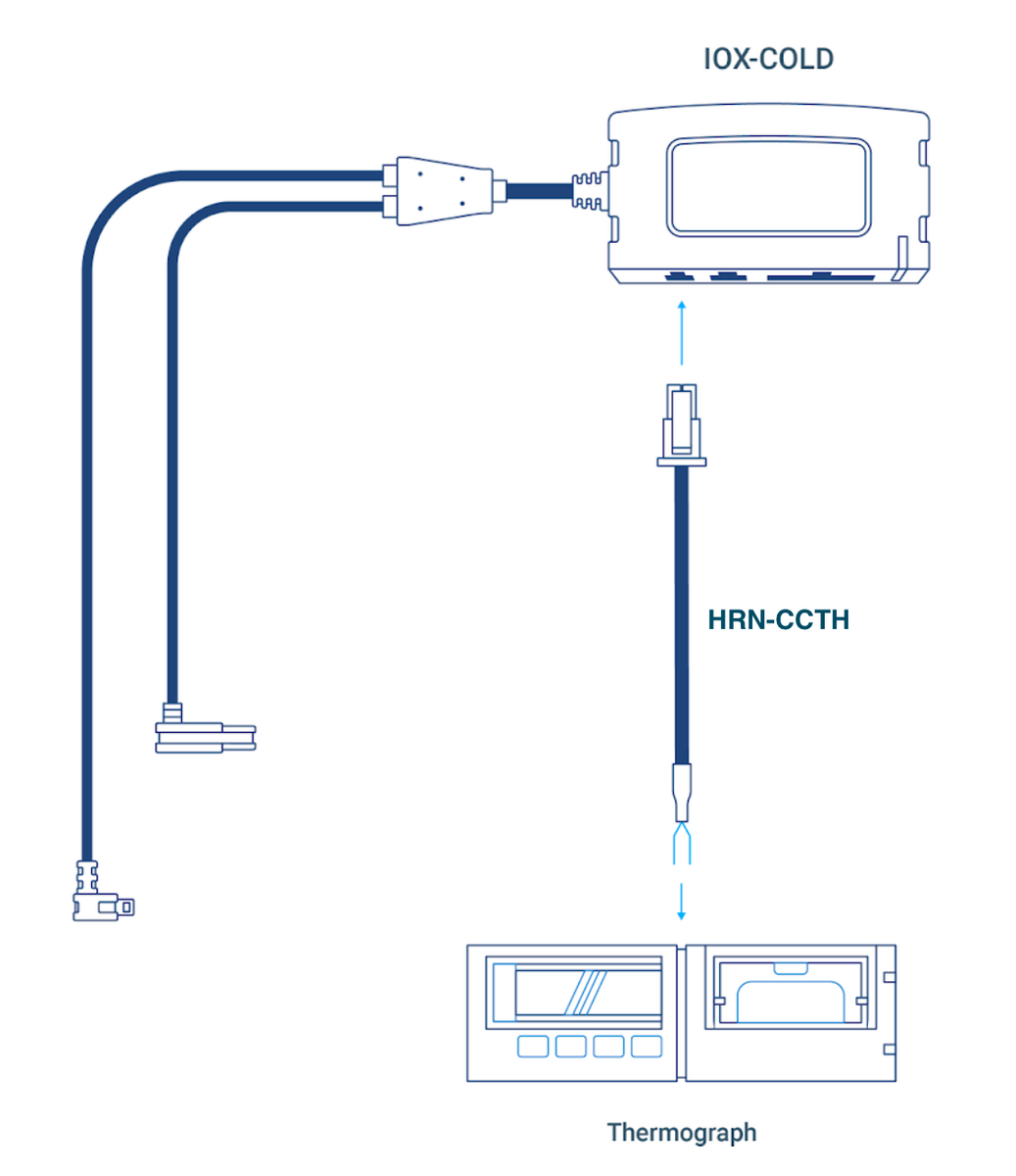

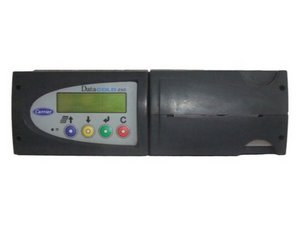

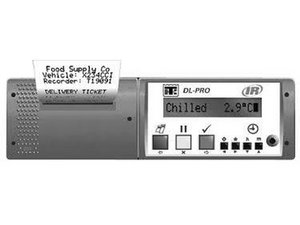

Geotab Cold chain solution integrates with several thermograph's. The IOX-COLD is connected to a thermograph using the HRN-CCTH harness.
Thermograph Connection
- The HRN-CCTH provides 3 wires for the thermograph connection which can be directly connected to the thermograph’s screw terminal connectors or to the thermograph’s wiring harness.
HRN-CCTH Harness Wiring
| HRN-CCTH | Thermograph | |
| Signal | Wire Color | Signal |
| RS232-RX | Turquoise | RS232-TX |
| RS232-TX | Purple | RS232-RX |
| GND | Black | GND |
