Turquoise -> TX(2)
-
Purple -> RX(3)
-
Black -> GND(1)
-
-
-

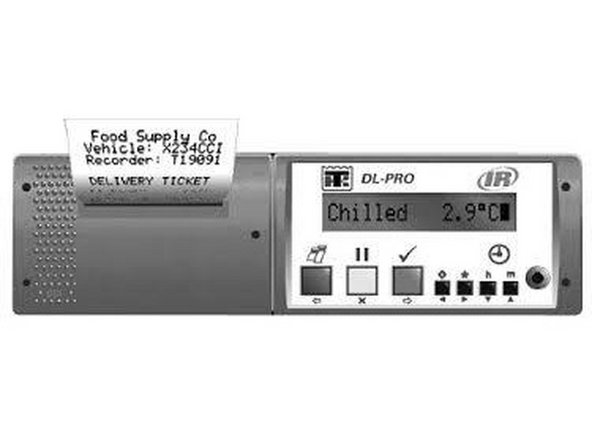

If the equipment does not receive information from the thermograph, you can check port speed by accessing the Configuration Menu:
-
Press the blue and red button together until Enter PIN code is displayed. Press the blue button 4 times (pin code 1111). Use the red button to scroll through the options.
-
Option ENG Display > OFF must be set to ON moving the cursor with the ◄ and ► keys.
-
Continue scrolling through options until you find Baud Rate > 9600. Value must be 9600, otherwise adjust it moving with the ◄ and ► keys and adjusting with the ▲ and ▼ keys.
-
