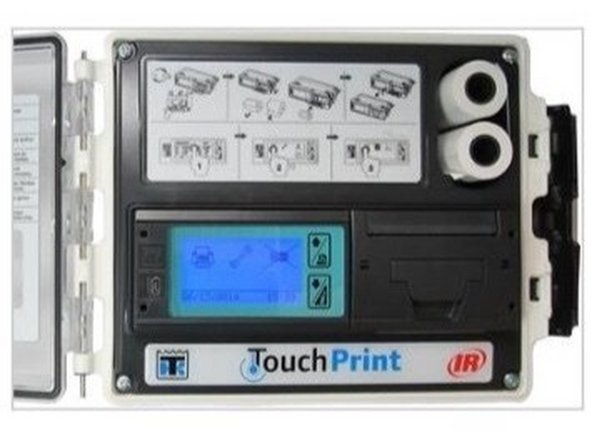

Thermo King - TouchLog/TouchPrint

Written By: Jason Fox
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

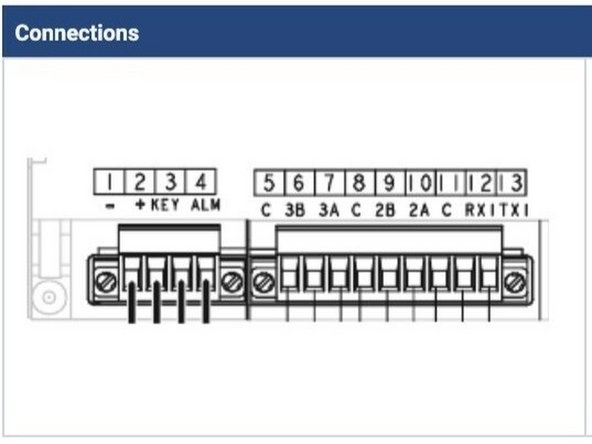

  1. Turquoise -> TX(13)

    • Turquoise -> TX(13)

    • Purple -> RX(12)

    • Black -> GND(1)

  2. Access Service Menu by pressing this key for more than 2 seconds.This menu is password protected. The default password is 10320.

    • Access Service Menu by pressing this key for more than 2 seconds.This menu is password protected. The default password is 10320.

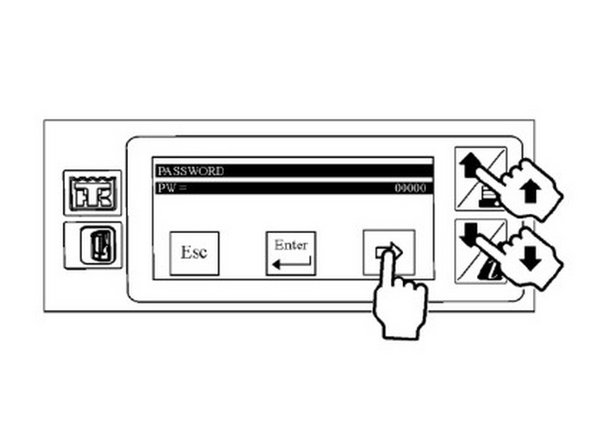

    • Press the arrow pointing to the right to enter the password.

    • Click the arrows pointing up and down to enter each number. Click the arrow pointing to the right to move to another.

    • Press Enter to finish.

  3. Once the password is validated, press the arrows pointing up or down to navigate between screens. Go to S1 Serial Port 1 configuration and make sure this is the configuration:

    • Once the password is validated, press the arrows pointing up or down to navigate between screens. Go to S1 Serial Port 1 configuration and make sure this is the configuration:

    • PROTO = MODBUS, ADDRESS=1

    • BAUD=9600, PARITY=N, STOP BIT=1

  4. IMPORTANT : It is necessary to upgrade the firmware of the thermographs with firmware version lower than 515.026. Check the version from the main screen. ✱ NOTE: If it is necessary to upgrade the firmware, please contact Support.

    • IMPORTANT : It is necessary to upgrade the firmware of the thermographs with firmware version lower than 515.026. Check the version from the main screen.

    • ✱ NOTE: If it is necessary to upgrade the firmware, please contact Support.
