    • If installing an IOX accessory please continue using the correct guide from here.

  1. Plug device into remaining end of the harness. Start Vehicle.
    • Plug device into remaining end of the harness.

    • Start Vehicle.

    • Verify LED pattern.

    • The device emits 2 quick beeps every 60 seconds during set-up. Once all three LEDs turn solid you will hear 10 quick beeps.

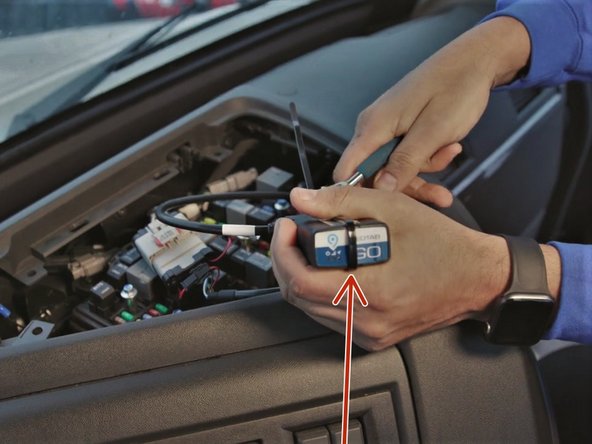

  2. Secure the device to the harness with included cable tie.
    • Secure the device to the harness with included cable tie.

    • Trim excess cable tie flush.

    • Every device has a black serialized cable tie included & should be used in this step.

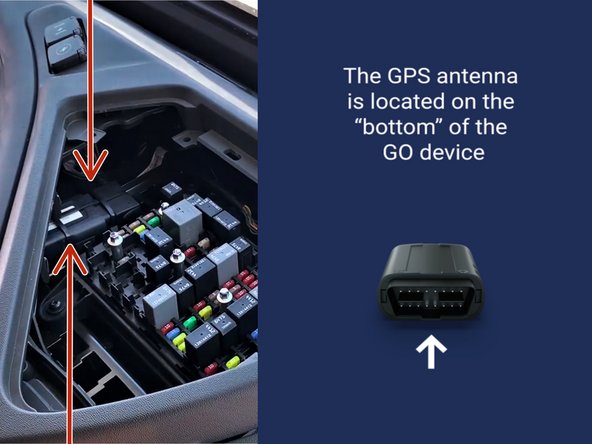

  3. Route device and harness to mounting location as needed.
    • Route device and harness to mounting location as needed.

    • Ensure cable does not interfere with any moving parts.

    • Secure harness as needed with cable ties.

    • Secure device using 2 cable ties.

    • To ensure reporting quality the device must be secured with no free movement!

    • To ensure reporting quality the bottom of the device must have line of sight to the sky!
