Telemetry option is only available on the MT7.
-
TGPS module - OEM P/N OPM39 is required to connect to IOX-AUXM.
-
-
-
Connect the TGPS-OPM39 in the overhead dash of MT7.
-
-
-

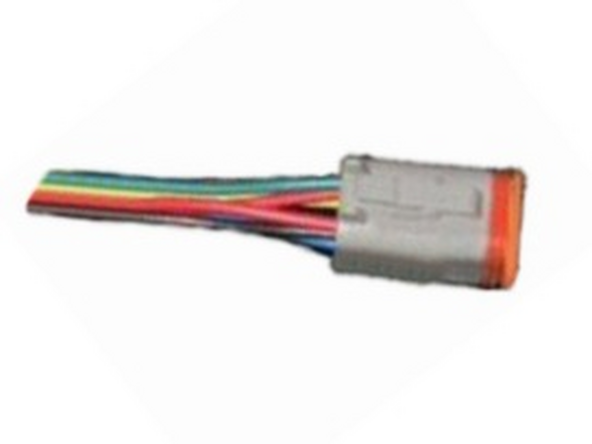

The TGPS package (P/N OPM39) comes with the Deutsch connector kit.
-
TGPS pin 3 (blue) - Attachment down - IOX-AUXM AUX 6
-
TGPS pin 4 (yellow) Sander on - IOX-AUXM AUX 5
-
TGPS pin 6 (green) - PTO on - Not used
-
TGPS Pin 1 (red) +12v ignition,
-
TGPS Pin 2 (black) ground,
-
TGPS pin 5 (red) +12 battery - not required - do not connect.
-
REQUIRED - Cut the loop for AUX 6-8.
-
-
-

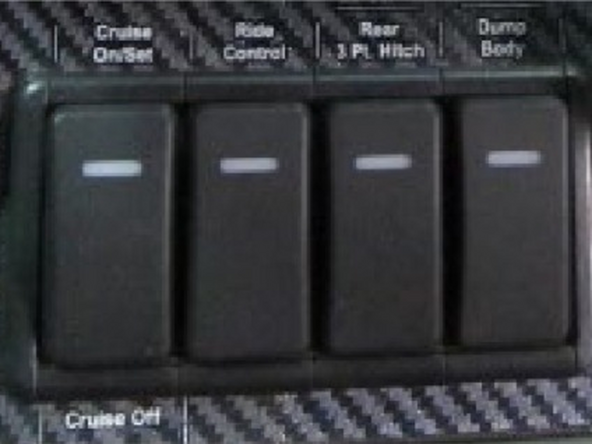

The TGPS is required to be placed into “Active high” mode (0v at rest, +12V output when in use).
-
Turn on Battery disconnect switch and leave key on with engine off.
-
Press “Dump Box” and “Three point hitch” switches to on. Wait until the light on Dump and Hitch go out before proceeding.
-
Hold “Cruise control” button in set position for 15+ seconds
-
Cycle key off - wait 5 seconds - key on.
-
Turn Dump Box, Three point hitch, and cruise control off.
-
