The Thermo King SR2 / SR3 / SR4 controller models require the HRN-RCCTKSR2 harness.
-

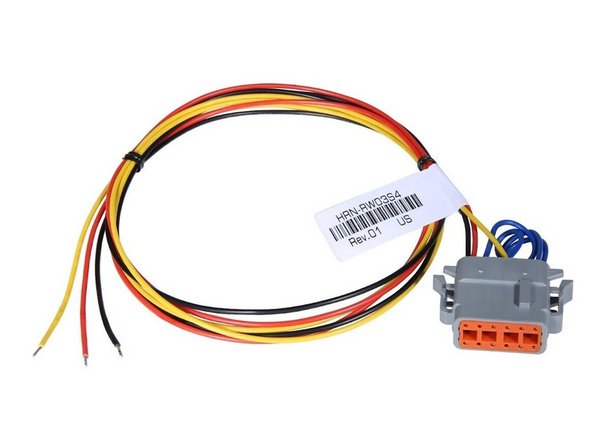

HRN-RW03K4 is required for the constant power, ignition & ground connections for the GO RUGGED device.
-
-
-
The HRN-RCCTKSR2 harness will provide Power, Ground & Ignition to the GO RUGGED HRN-RW03K4 harness.
-
Connect the Red / Black / Yellow wires from the HRN-RCCTKSR2 harness to the HRN-RW03K4 harness.
-
Ensure all connections are sealed with heat shrinkable butt connectors or solder and heat shrink.
-
This connection must be made prior to the refrigeration unit connection.
-
-
-
Connect the male end of the HRN-RCCTKSR2 harness to one of the following locations on the controller board.
-
If all of the locations mentioned below are already populated, disconnect one of the connectors and plug it into the female end of the HRN-RCCTKSR2 harness.
-
-
-
Smart Reefer 2 Controllers: J12 (CAN1), J13 (CAN2) or J14 (CAN3)
-
-
-
Smart Reefer 3 Controllers: J12 (CAN1), J13 (CAN2) or J14 (CAN3)
-
-
-
Smart Reefer 4 Controllers: J12 (CAN1) or J13 (CAN2)
-
-
-
For more information please refer to this document.
-
