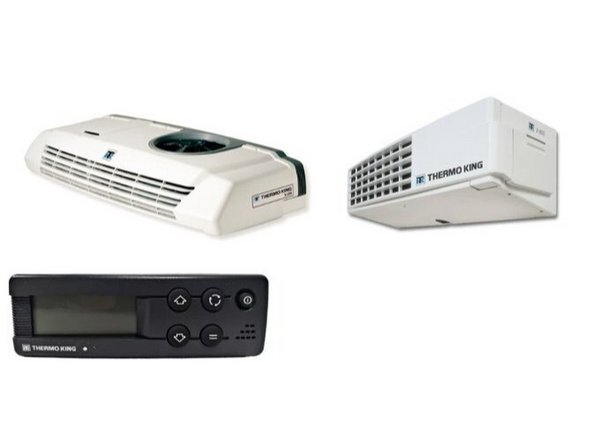

Thermo King Direct Smart Reefer (DSR) Units

Written By: Jason Fox (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

Recommended Tools & Consumables

No Recommended Tools & Consumables specified.

Hardware & Accessories

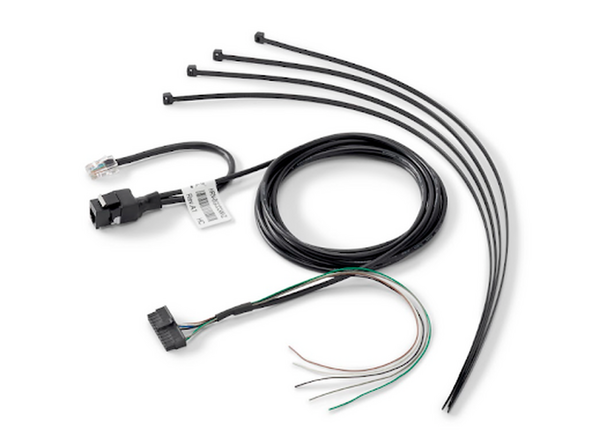

  1. The ThermoKing Direct Smart Reefer (DSR) Units require HRN-CCTKDSR harness to connect to the controller in cab.

    • The ThermoKing Direct Smart Reefer (DSR) Units require HRN-CCTKDSR harness to connect to the controller in cab.

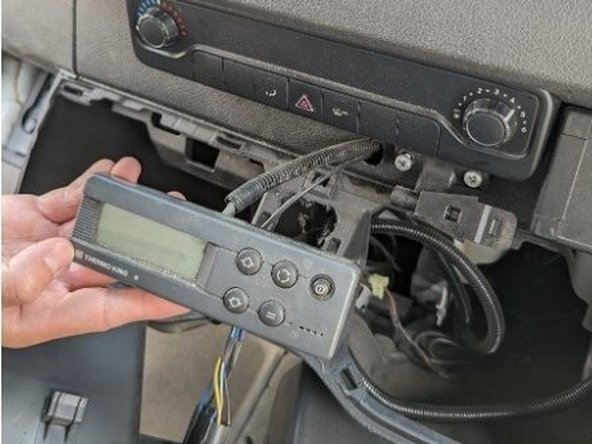

  2. Find the in-cab controller located in the vehicle cabin. Remove it from its mechanical support.

    • Find the in-cab controller located in the vehicle cabin.

    • Remove it from its mechanical support.

  3. Connect the HRN-CCTKDSR harness to the IOX-COLD.

    • Connect the HRN-CCTKDSR harness to the IOX-COLD.

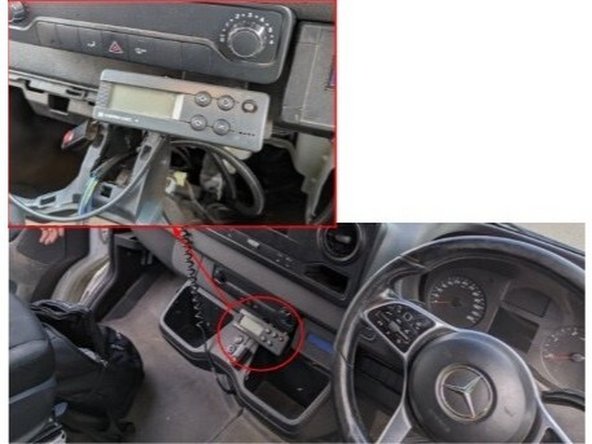

  4. Route the harness to the in cabin controller location.

    • Route the harness to the in cabin controller location.

    • If the in-cab controller is located near the rearview mirror, route the harness through the vehicle’s cabin columns (right or left, depending on where the IOX-COLD and GO devices will be installed and connected).

  5. Unplug the in-cabin controller from its original vehicle connected harness. Connect HRN-HTKDSR or HRN-CCTKDSR white male connector to the in-cab controller. Connect HRN-HTKDSR or HRN-CCTKDSR white male connector to the in-cab controller.

    • Unplug the in-cabin controller from its original vehicle connected harness.

    • Connect HRN-HTKDSR or HRN-CCTKDSR white male connector to the in-cab controller.

  6. Connect the HRN-HTKDSR/HRN-CCTKDSR’s white female connector to the original vehicle harness that was disconnected.

    • Connect the HRN-HTKDSR/HRN-CCTKDSR’s white female connector to the original vehicle harness that was disconnected.

  7. The harness contains loose wires which permit connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • The harness contains loose wires which permit connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • Refer to the Accessories category for installation instructions.
