Roadwatch BLE temperature

Written By: Jason Fox
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

Video Overview

  1. The Roadwatch RS232 BLE requires the optional accessory “Y” splitter, part number 434-0114-000 to connect an additional device such as the digital readout Roadwatch RS-232 adapter box should be powered on ignition.

    • The Roadwatch RS232 BLE requires the optional accessory “Y” splitter, part number 434-0114-000 to connect an additional device such as the digital readout

    • Roadwatch RS-232 adapter box should be powered on ignition.

  2. Plug IOX-WRKS primary port into Roadwatch as shown.

    • Plug IOX-WRKS primary port into Roadwatch as shown.

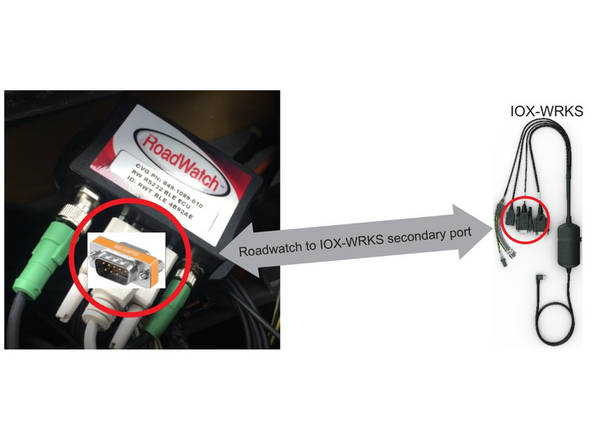

  3. Use ONLY if the primary port is occupied for spreader integration.

    • Use ONLY if the primary port is occupied for spreader integration.

    • A “DB9 M/M Null” Modem adapter or cable must be used when connecting to the secondary port.

    • The Roadwatch BLE is factory shipped requiring broadcast mode to be activated. This will be done when the configuration is loaded to the IOX-WRKS. If manual config is needed please refer to video above.
