    • If installing an IOX accessory please continue using the correct guide from here.

  1. Identify the mounting location of the GO Rugged. The location must be a solid part of the vehicle.
    • Identify the mounting location of the GO Rugged. The location must be a solid part of the vehicle.

    • Ensure the device has a good line of sight to the sky.

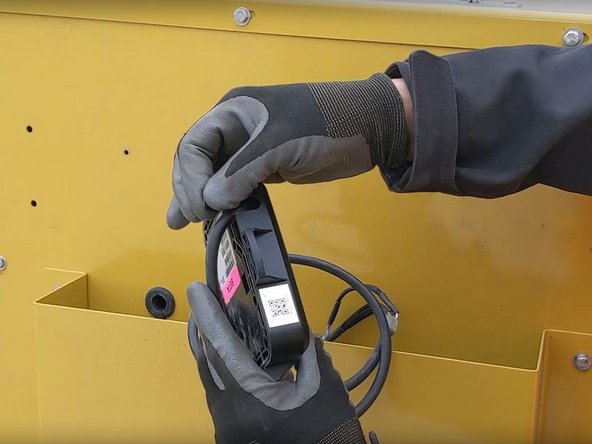

  2. The GO Rugged harness can be positioned out the back of the device for through hole mounting or it can be positioned to exit the side of the device. To route the harness  out of the side, remove the plastic cover to reposition the harness.
    • The GO Rugged harness can be positioned out the back of the device for through hole mounting or it can be positioned to exit the side of the device.

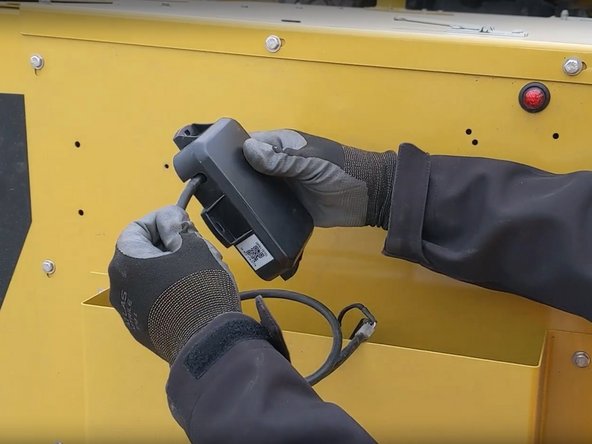

    • To route the harness out of the side, remove the plastic cover to reposition the harness.

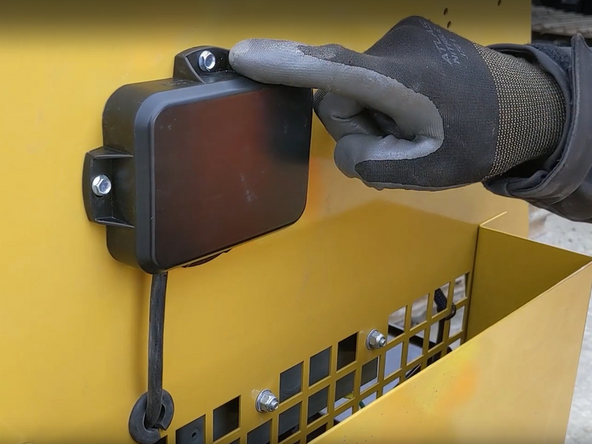

  3. Secure the device by using self tapping screws.
    • Secure the device by using self tapping screws.

    • Check behind the mounting location to ensure the area is clear of any obstructions or electrical wires/components.
