IOX-OUTPUTM Prerequisite Installation Guide

Written By: Ezequiel Montalvo (and 2 other contributors)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

    • Before starting the installation, ensure the Geotab GO device is unplugged from the vehicle.

  2. The IOX-OUTPUTM has two wires: a relay driver output wire (white) and a ground wire (black).

    • The IOX-OUTPUTM has two wires: a relay driver output wire (white) and a ground wire (black).

  3. Connect the black wire from the IOX-OUTPUTM to a chassis ground. A self-tapping screw can be used to secure the ring terminal to a part of the metal dash frame.

    • Connect the black wire from the IOX-OUTPUTM to a chassis ground. A self-tapping screw can be used to secure the ring terminal to a part of the metal dash frame.

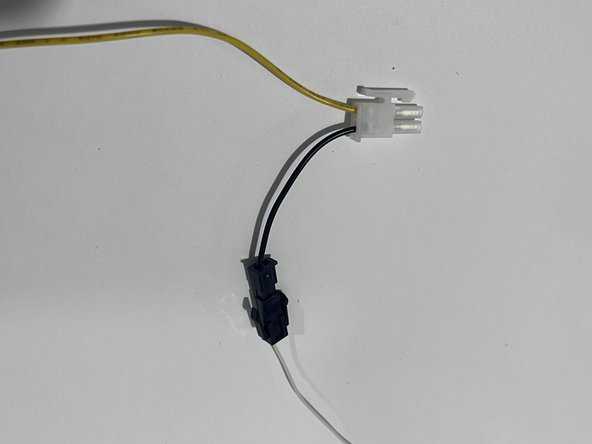

  4. Connect the white wire with the Molex connector to the black wire with the Molex connector on the SPR-IOXREL harness.

    • Connect the white wire with the Molex connector to the black wire with the Molex connector on the SPR-IOXREL harness.

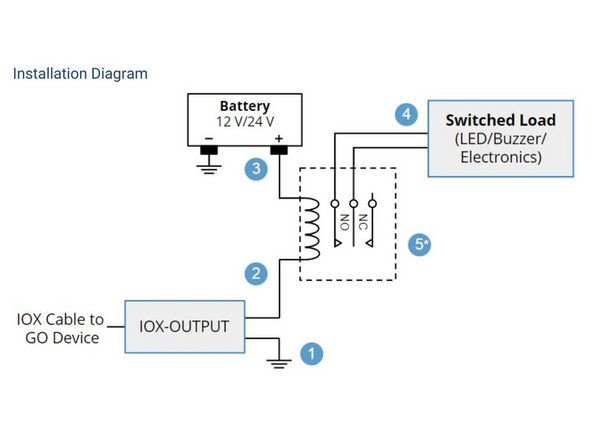

  5. Installation diagram

    • Installation diagram
