    • WARNING! Only use Geotab telematics devices with Geotab-approved harnesses acquired from Geotab-authorized channels. Use of non-Geotab harnesses from unauthorized channels can cause serious safety risks, including fire, and can lead to serious personal injury and/or damage to the vehicle.

    • IMPORTANT: Always use a vehicle-specific harness when offered by Geotab or the vehicle manufacturer to avoid possible GO device damage. Some vehicles have multiple diagnostic connectors to choose from when installing a GO device.

    • For more information on Geotab harnesses and adapters, see Harness Identification and Application & Harness Assessment Cheat Sheet GUIDE V2.0

    • If a longer length is required to facilitate installation, connect a straight harness to a T-harness. Ensure that the total harness length does not exceed 2 meters (or 6.5 feet). Any two harnesses that exceed 2 meters may compromise the integrity of the data and cause issues with the vehicle’s Engine Control Unit (ECU).

    • For more details on compliance information and applicable products, contact your Authorized Reseller.

    • Some installations are not straightforward and must be completed by an Authorized Installer to ensure a secure installation.

    • Ensure to use many cable ties to secure both the device and harness to the vehicle. An unsecure device installation can result in poor electric and/or data connections that can lead to short circuits and fires or cause malfunctions of vehicle controls that can result in serious personal injury or significant damage to your vehicle.

    • Some examples requiring professional installation from an Authorized Installer are:

    • The OBD port location is such that the device could protrude or interfere when entering or exiting the vehicle, or located where it can be inadvertently kicked or bumped during vehicle operation. The device isn't fully secured and so may be able to vibrate loose or get kicked or knocked. An electrical harness or additional wiring is required.

    • Vehicle mounting modifications are required to secure the device i.e. removing of panels, or the OBD connector has been deformed/damaged or there is any physical damage visible to the electrical wiring.

    • The device does not power on and beep six times when first installed.

    • The installer questions their ability to complete a secure installation according to these instructions.

    • Do not attempt to install, reconfigure or remove any product from a vehicle while the vehicle is in motion or otherwise in operation. All installation, configuration or removal must be done only in stationary vehicles which are securely parked.

    • Attempting to service devices while the vehicle is in motion could result in malfunctions or accidents, leading to death or serious personal injury.

  1. Before installing, you should record the following:
    • Before installing, you should record the following:

    • GO device serial number

    • Found above barcode on device label

    • Odometer

    • Fleet Alias/Number/ID

    • VIN (vehicle identification number)

  2. There are 3 wires which must be connected.
    • There are 3 wires which must be connected.

    • Red

    • +12/24V Constant power must be connected to a true battery source (live at all times).

    • Black

    • Must be connected to a verified ground.

    • Yellow

    • Ignition sense wire must be connected to a true ignition source.

    • +12/24V when the key is in both ON and Run positions, 0 when in Off position.

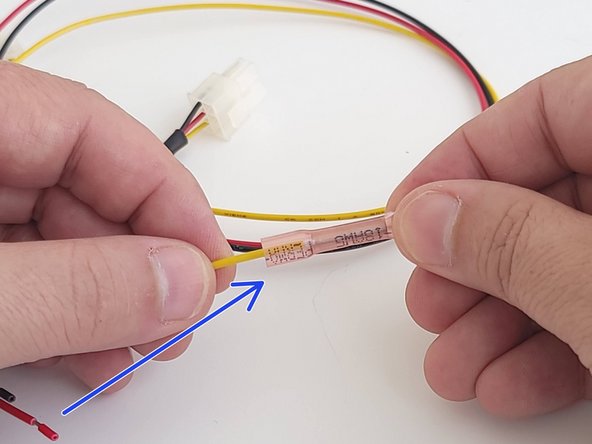

  3. Using your wire crimpers, attach the fuse holders on to the Red and Yellow wires using the included parts. The wires should come with the insulation pre stripped; ready for crimp on connectors.
    • Using your wire crimpers, attach the fuse holders on to the Red and Yellow wires using the included parts.

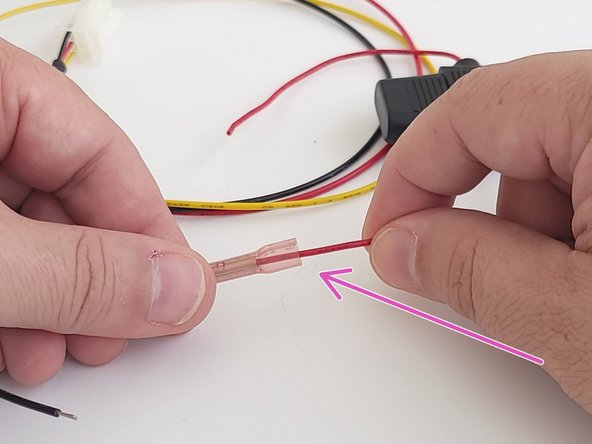

    • The wires should come with the insulation pre stripped; ready for crimp on connectors.

    • Crimp one of the included butt splice connectors on to the end of the Yellow wire.

    • Crimp the open end from the previous step onto one end of the Fuse holder.

    • Using a heat gun, or other heat source, heat shrink the butt splice connectors.

    • Repeat the above steps for the Red wire.

    • The remaining blunt cut end from the fuse holder will be what is connected to the vehicle.

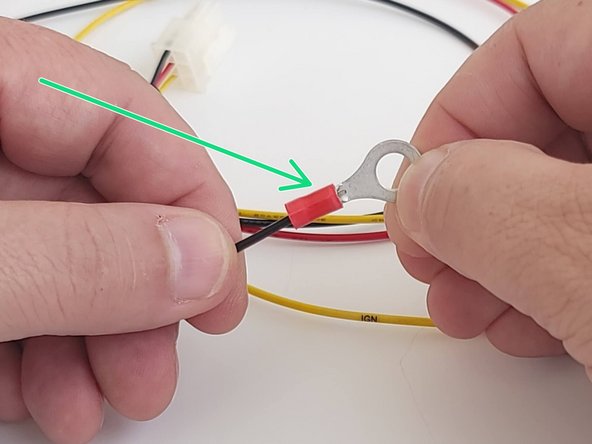

  4. Using your wire crimpers, crimp the ring terminal on to the Black wire.
    • Using your wire crimpers, crimp the ring terminal on to the Black wire.

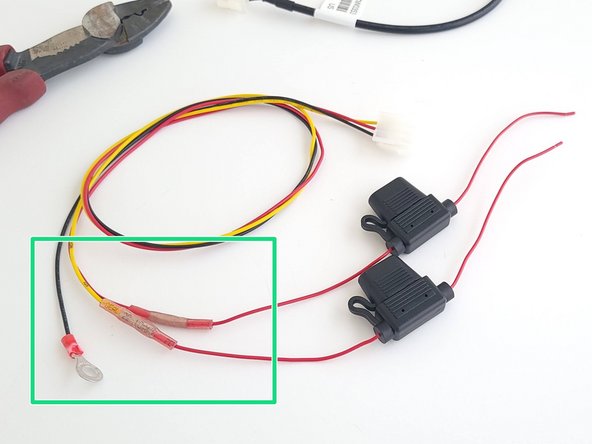

  5. The completed assembly should look like this.
    • The completed assembly should look like this.

    • Geotab does not recommend terminating to unknown circuits! Appropriate reference information is highly encouraged.

    • Known and publicly available publishers for automotive electrical & electronics: Fortin's Wire Color, Alldata DIY, Mitchell 1 DIY.

  6. Locate and verify a constant +12/24V Battery source. Always use a Digital Multi Meter.
    • Locate and verify a constant +12/24V Battery source.

    • Always use a Digital Multi Meter.

    • A suitable battery source will have +12/24V at all times, just like if you were to be connected directly to the battery.

    • Typical locations

    • Ignition switch.

    • Fuse and power distribution panels.

  7. Locate and verify a +12/24V Ignition source. Always use a Digital Multi Meter.
    • Locate and verify a +12/24V Ignition source.

    • Always use a Digital Multi Meter.

    • A suitable Ignition source will have +12/24V while the vehicle's key or button is set to on/run and 0V when set to off.

    • Typical locations

    • Ignition switch.

    • Fuse and power distribution panels.

  8. Connect the ring terminal to a verified  ground using a self tapping screw (not included) or existing bolt.
    • Connect the ring terminal to a verified ground using a self tapping screw (not included) or existing bolt.

    • The surface may need to be prepared prior to connection.

    • The ground surface should be bare metal.

    • Remove any paint, corrosion, or other coating if present.

    • Most heavy structure in the dash area is suitable to use as a ground. Always test using a DMM.

    • Star washers and serrated head screws are recommended. (not included)

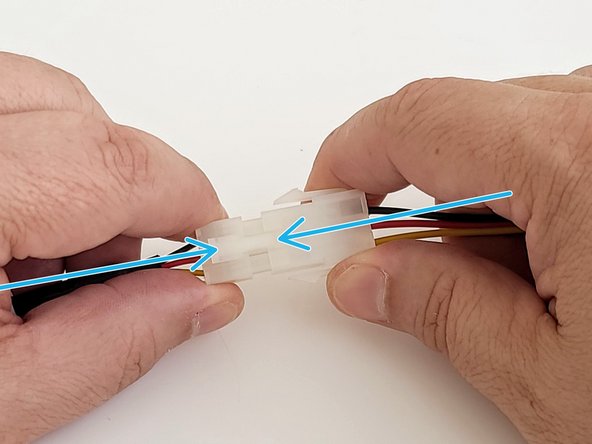

  9. Once all 3 wires (Red, Black, & Yellow) are connected to the vehicle:
    • Once all 3 wires (Red, Black, & Yellow) are connected to the vehicle:

    • Plug the fuse holder side and the device side of the HRN-CW03K3 harness together.

    • If installing an IOX accessory please continue using the correct guide from here.

  10. Plug the GO device into remaining end of the harness.
    • Plug the GO device into remaining end of the harness.

  11. Start Vehicle.
    • Start Vehicle.

    • Verify LED pattern.

    • The device emits 2 quick beeps every 60 seconds during set-up. Once all three LEDs turn solid you will hear 10 quick beeps.

  12. Secure the device to the harness with included cable tie.
    • Secure the device to the harness with included cable tie.

    • Trim excess cable tie flush.

    • Every device has a black serialized cable tie included & should be used in this step.

  13. Route device and harness to mounting location as needed.
    • Route device and harness to mounting location as needed.

    • Ensure cable does not interfere with any moving parts.

    • Secure harness as needed with cable ties.

    • Secure device using 2 cable ties.

    • To ensure reporting quality the device must be secured with no free movement!

    • Device must not be secured with bottom side facing in direct contact of metal!

    • To ensure reporting quality the bottom of the device must have line of sight to the sky!

    • Lines of sight through plastics, glass, and composites are generally acceptable.

    • All in-vehicle devices and related cabling must be securely fastened and kept clear of all vehicle controls, airbags, and gas, brake and clutch pedals.

    • This requires the use of a cable tie when securing the device or any extension harness to the OBD connector, securing both sides of the harness. If you do not use a cable tie, vibration in the vehicle can lead to a loose connection which could cause the vehicle’s engine computer to fail, causing potential loss of vehicle control and serious injury.

    • Inspect devices and cabling regularly to ensure all devices and cabling continue to be securely attached.

    • If at any point after an in-vehicle device is installed a warning light illuminates on the vehicle dash or the vehicle stalls or has a marked drop in performance, shut off the engine, remove the device, and contact your reseller. Continuing to operate a vehicle with these symptoms can cause loss of vehicle control, and serious injury.

  14. Enter the installer information.
    • Enter the installer information.

  15. Enter the device serial number.
    • Enter the device serial number.

    • If possible, use the barcode scan feature.

  16. Turn on the vehicle and wait for the device status to PASS. Some Hybrids and EV's may require a short drive
    • Turn on the vehicle and wait for the device status to PASS.

    • Some Hybrids and EV's may require a short drive

    • If the device status shows as FAILED, verify the LED status and turn the vehicle engine off and on again.

    • Press Refresh to check the status again.

    • Refer to this link for detailed instructions.

  17. Enter all applicable vehicle information.
    • Enter all applicable vehicle information.

    • Enter applicable Camera information in the Camera ID field if one was installed.

    • Read and acknowledge Geotab's Privacy policy.

  18. If the installation check finishes without errors, a Success! message appears. Press New installation to check another installation, or press Exit when done.
    • If the installation check finishes without errors, a Success! message appears.

    • Press New installation to check another installation, or press Exit when done.

    • If the installation check encounters any errors, an Error message appears.

    • Select New installation to check another installation or press Exit when done.

    • For the latest version of the Limitations of Use, please visit: http://goo.gl/k6Fp0w

    • Your in-vehicle devices must be kept clear of debris, water and other environmental contaminants. Failure to do so may result in units malfunctioning or short-circuiting, which can lead to a fire hazard and cause loss or serious injury.
