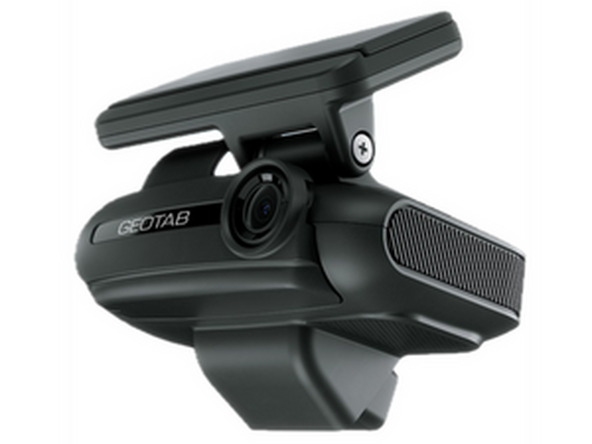

Go Focus Pro

Before installing the GO Focus Pro, download the Geotab Video app. Available on Apple App Store and Google Play Store.

Apple Geotab Video

Android Geotab Video

Using a multimeter, identify the constant battery power (B+) fuse slot and the ignition (ACC) fuse slot.

Temporarily connect the HRN-IOXGFPRO-3W 3-wire harness to the fusebox using fuse taps:

Red wire — ACC (ignition signal)

Yellow wire — Constant B+ (battery power)

Black wire — Ground (GND)

This temporary connection powers the camera for adjustment. The harness will be routed and secured permanently in a later step.

Pre-loosen the screws on the camera using the provided Allen key so you can adjust the camera angle.

Install the mounting bracket to the back of the device.

Connect the 3-wire harness cable to the GO Focus Pro.

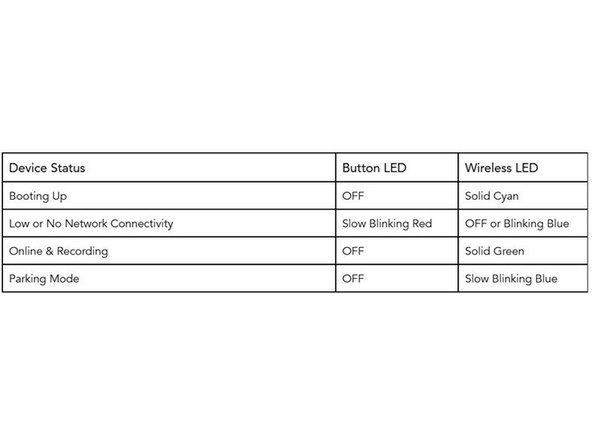

Turn on the vehicle and wait for the LED on the GO Focus Pro to go solid green.

Launch the Geotab Video app.

Select "Activate dashcam" and follow the prompts on screen.

The app will ask you to scan the serial number located on the GO Focus Pro box.

With the GO Focus Pro powered on and connected to the Geotab Video app, hold the camera in the desired mounting position on the windshield — within the wiper sweep area.

Use the app's live camera view to confirm the cabin and road camera angles look correct from this position.

Once satisfied with the position, use masking tape to mark the perimeter of the mounting bracket on the windshield.

Verify sun visor does not block cabin facing camera when in the down positon.

Use the provided alcohol wipe to thoroughly clean the mounting area on the windshield. Let the alcohol evaporate completely before proceeding.

Do not touch the cleaned area with bare hands — skin oils will reduce adhesion.

Remove the adhesive backing from the mounting bracket on the back of the camera.

Press the camera firmly onto the cleaned area of the windshield and hold with steady pressure for 30 seconds.

If the windshield is below 50°F (10°C), use the vehicle's defrost to warm the glass before mounting — cold glass significantly reduces adhesive bond strength.

Select "Adjust" for the road-facing camera.

Adjust the camera so that the horizon is in the blue box.

In the app, select "Adjust" in the cabin section.

Adjust the physical camera so that the driver's head is sitting in the blue box.

Sit in a normal driving position when adjusting the cabin camera to ensure proper alignment.

Once both camera angles are set, the app will ask you to verify and do a final check.

Select "Verify" and the verification is complete.

Dismount the camera from the mounting bracket.

Press the mounting bracket for an additional 30 seconds to ensure it is firmly in place.

Place the camera back on the mounting bracket.

Carefully remove the cover for the driver's side A-pillar and any additional paneling required to route the harness.

Tuck the harness cable behind the headliner toward the A-pillar, ensuring it is not obstructing the driver's view.

Secure the cable along the A-pillar in a way that it does not obstruct the airbag functionality.

Use cable ties as required. Trim any excess tie.

Route the harness cable from behind the headliner down to the fusebox.

Make the permanent fuse tap connections — Red (ACC), Yellow (B+), Black (GND).

Secure all wiring neatly behind the fusebox panel using cable ties. Trim any excess tie.
