Dickey John Control Point

The IOX-WRKS primary port connects to the RS232 Connector for AVL serial port on the Dickey John Control Point harness using the standard null cable HRN-DB9NM.

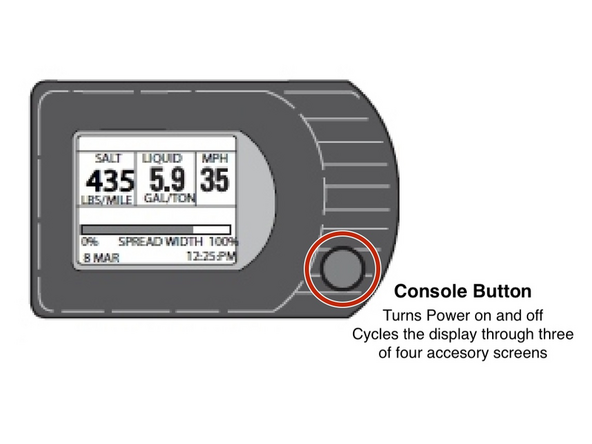

Turn on the Dickey John Control Point controller and turn the Master Switch "off".

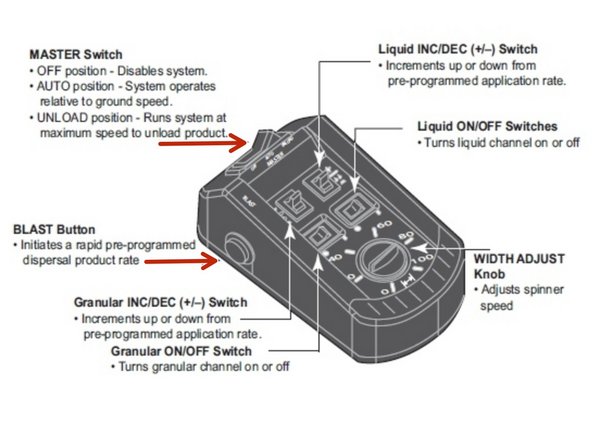

Press the Console button until the [Material Select] screen displays.

Press the Blast button to toggle the [Manual Speed] setting from "off" to "on".

When the [Manual Speed] setting is "on", the ground speed is simulated and the screen will return to the operation screen.

Turn the Master Switch "on".

Set [Spinner], [Conveyor] and [Liquid] to desired settings.

After the verification is complete, return the controller back to its original settings. Ensure that the [Manual Speed] setting is set to "off".

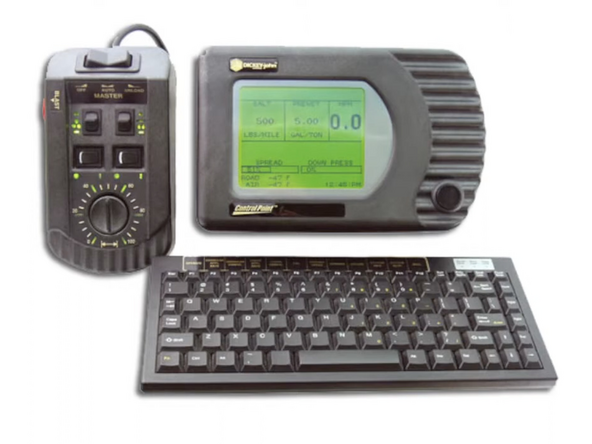

The Dickey John Control Point controller can also be placed into simulation mode by using a keyboard connected to the PS/2 connector on the controllers harness. You may need to use a USB to PS/2 adapter.

Turn on the Dickey John Control Point controller and turn the Master Switch "off".

Press [F7] on the keyboard to enter the [Ground Speed] screen.

Press the [number 2] key to enter [Configuration]. Press the [down arrow key] to “Manual Speed”.

Press the [Y] key for "yes" or [N] key for "no" (Y=sim speed on / N=sim speed off).

Press the [ESC] key and then the [F1] key to return to the main operator screen.

Set [Spinner], [Conveyor] and [Liquid] to desired settings.

After the verification is complete, return the controller back to its original settings. Ensure that the [Manual Speed] setting is set to "off".
