Certified Power / Cirus ATS

Written By: Alkesh Dhak
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

    • Prior to installation, contact your Certified Power representative for instructions on how to enter the menu system as an administrator.

  2. The IOX-WRKS primary port connects to the MODEM RS232 SERIAL port on the Certified Power / Cirus ATS using the standard null cable HRN-DB9NM. The IOX-WRKS primary port connects to the MODEM RS232 SERIAL port on the Certified Power / Cirus ATS using the standard null cable HRN-DB9NM. The IOX-WRKS primary port connects to the MODEM RS232 SERIAL port on the Certified Power / Cirus ATS using the standard null cable HRN-DB9NM.

    • The IOX-WRKS primary port connects to the MODEM RS232 SERIAL port on the Certified Power / Cirus ATS using the standard null cable HRN-DB9NM.

    • Remove the “GPS installed” checkmark.

    • Remove the “Include MAC address” checkmark.

    • Set ACK Timeout = 0

    • Set Physical interface = Serial

    • Set Secondary = None

    • Set Auto Server Selection = 10

    • Set Logical Interface = String format 1

    • Set Data Transmission Rate = 0

    • Breadcrumbs = 10

    • Record Spreader Status Changes = Checked

    • Baudrate = 9600

    • Clear SD card contents (Holding.bin)

    • Restart ATS

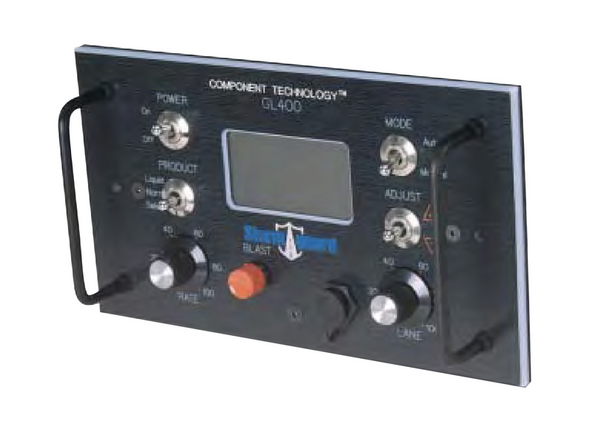

  6. Certified Power GL400

    • Certified Power GL400

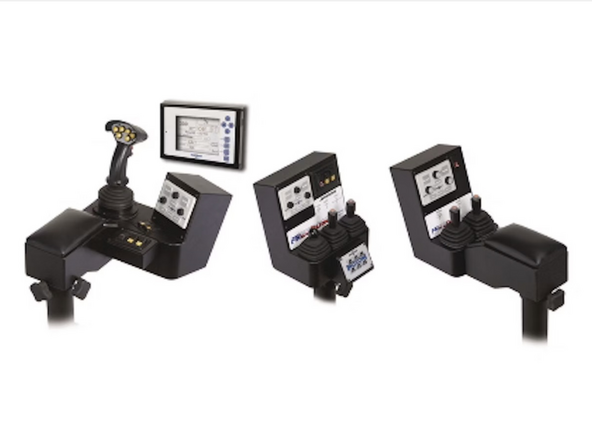

  7. Certified Power ACS

    • Certified Power ACS

    • Ensure the IOX-WRKS has the correct controller configuration loaded before proceeding to verification / simulation mode.

Finish Line
