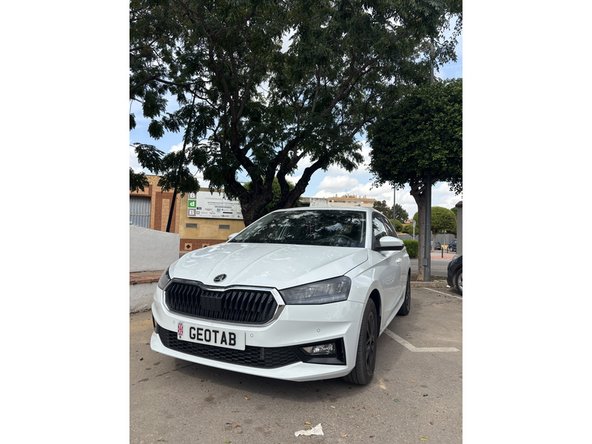

2025 - Present Skoda vehicles

Written By: Sebastian Arbelaez
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

  1. Locate the OBD-Port below the steering wheel in the driver’s footwell. Locate the OBD-Port below the steering wheel in the driver’s footwell.

    • Locate the OBD-Port below the steering wheel in the driver’s footwell.

  2. Use a suitable tool to unclip the OBD-Port from its mounting bracket

    • Use a suitable tool to unclip the OBD-Port from its mounting bracket

  3. Pull the middle panel on the A-pillar using a panel removal tool.

    • Pull the middle panel on the A-pillar using a panel removal tool.

  4. Use the adaptors 8 to mount our T harness appropriately at the origin of the OBD port. Insert the adapter number 8 into the OBD bracket. Push the harness with the molex connector end through the front of the Adapter, until it locks and secure the molex using a cable tie.

    • Use the adaptors 8 to mount our T harness appropriately at the origin of the OBD port.

    • Insert the adapter number 8 into the OBD bracket. Push the harness with the molex connector end through the front of the Adapter, until it locks and secure the molex using a cable tie.

  5. Route the harness up to the A-pillar middle panel side.

    • Route the harness up to the A-pillar middle panel side.

    • Secure the device to the harness with included cable tie.

    • Trim excess cable tie flush.

    • Every device has a black serialized cable tie included & should be used in this step.
